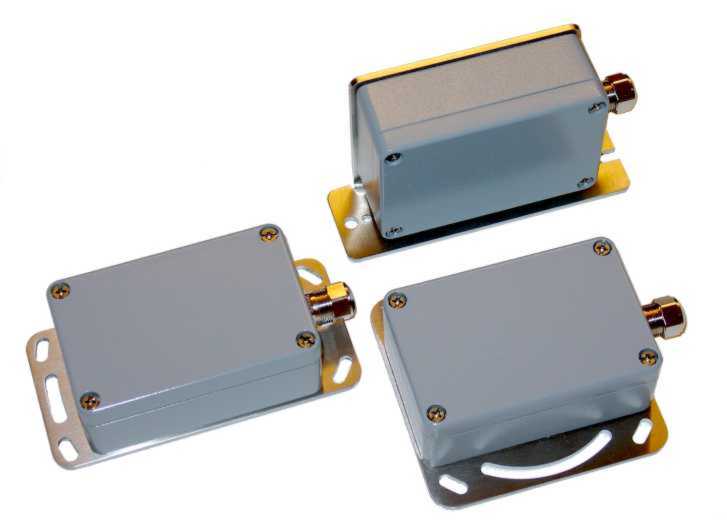

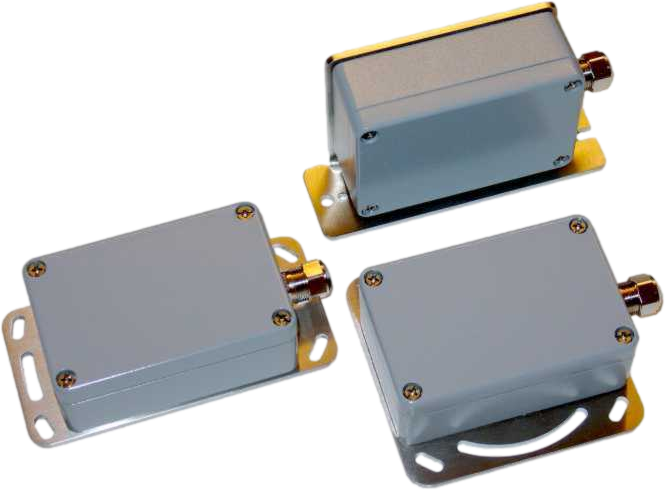

SBBS1, SBBB1, SBBW1
Fixing plates from stainless steel for sensorboxes
Application
The fixing plates are used for the simplified fixing and positioning of the sensorboxes SB.. at the point of measurement, without the sensorbox must be opened for this purpose.
Specifications
| Material | stainless steel |
| Weight SBBS1, SBBB1, SBBW1 without sensorbox | 102g, 128g, 272g |
| Weight accessorys (screws and tapped bushings) | approx. 10g |
| Dimensions | see dimension drawings |
- Accessorys, i.e. screws and tapped bushings to connect the sensorbox to the fixing plate, are included
Dimensions SBBB1 (in mm)
Dimensions SBBS1 (in mm)
Dimensions SBBW1 (in mm)
