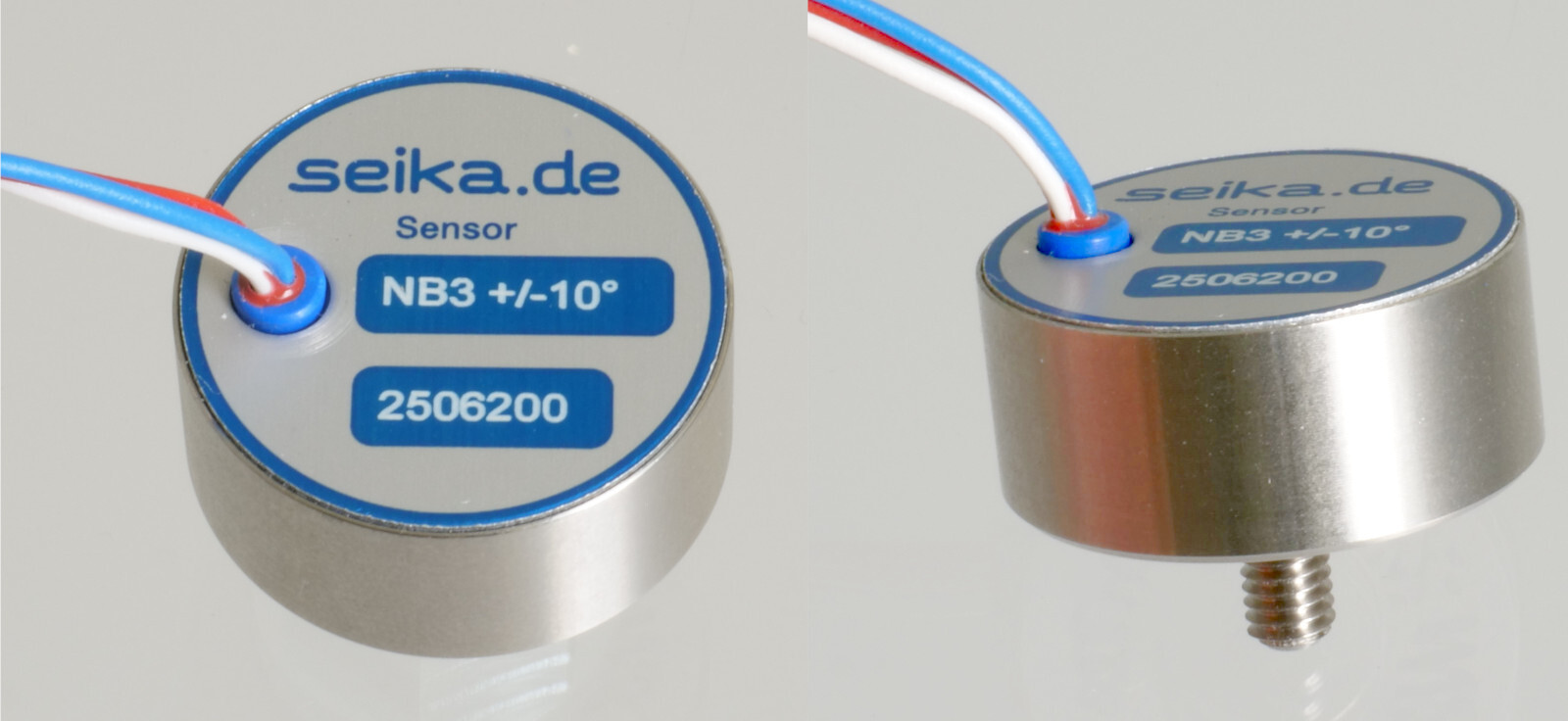

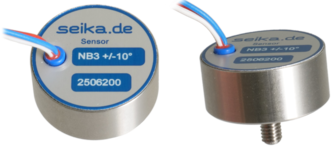

NB2, NB3
Inclinometer for inclination measurement in the ranges of ±2 and ±10 degrees
Features
- linear output characteristics
- high measurement accuracy
- high long-term stability
- hysteresis free output signal
- minimal zero point drift
- integrated sensor electronics
- low power consumption
- small housing
- light weight
- different output signal options
- no interference by ambient electromagnetic fields
- minimal transverse sensitivity over whole measuring range
- hermetically sealed
Description
The NB2 and NB3 inclinometers are static accelerometers preferably employed for measuring small inclinations. The sensor's primary transformer consists of a capacitive spring-mass system with gas-dynamic damping. The sensor is manufactured either with an analog DC or a pulse width modulated output. The integrated sensor electronics require only minimal power and are in conjunction with the capacitive primary transformer characterized by high accuracy and long-term stability.
Application
NB2 and NB3 sensors are suitable for applications requiring a small, light sensor for measurement of relatively small inclination angles. Typical areas of application include measuring instruments and inspection systems, vehicles, automation and safety engineering, scientific devices, medical and communications equipment as well as leveling systems.
Specifications
| Type | NB2 | NB3 |
|---|---|---|
| Measuring range | ±2 degrees | ±10 degrees |
| Display range | ±4 degrees | ±20 degrees |
| Values for analog DC output at UbN=5 Volt | ||
| Sensitivity | approx. 60 mV/degree | approx. 18 mV/degree |
| Type | NB2 |
|---|---|
| Measuring range | ±2 degrees |
| Display range | ±4 degrees |
| Values for analog DC output at UbN=5 Volt | |
| Sensitivity | approx. 60 mV/degree |
| Type | NB3 |
|---|---|
| Measuring range | ±10 degrees |
| Display range | ±20 degrees |
| Values for analog DC output at UbN=5 Volt | |
| Sensitivity | approx. 18 mV/degree |
| Shared specifications | |
|---|---|
| Dimensions | see dimension drawing |
| Resolution | <0.001 degrees |
| Linearity deviation | <0.2% full scale |
| Transverse sensitivity | negligible |
| Settling time | approx. 0.3 seconds (shorter times optional) |
| Nominal supply voltage (regulated externally) | UbN = 5 Volt |
| Permissible supply voltage range | 3V ... 6V |
| Degree of protection | IP65 |
| Operating temperature | -40 to +85°C (125°C optional) |
| Storage temperature | -45 to +90°C (125°C optional) |
| Weight (with approx. 18cm wires) | approx. 26g |
| Electrical connection | standard: • 3 highly flexible, color-coded wires ø ~1mm, length approx. 18 cm optional: • 0.5m strong, flexible, shielded cable, 2 wires + shield, ø2,1mm or • 3 flexible, color-coded wires with Teflon insulation for extended temperature range • special lengths on request |
| Mechanical overload capacity in measurement axis / transverse | 5000g / 100g |
| Output impedance | 10 kOhm |
| Values for analog DC output at UbN=5 Volt | |
| Zero offset | 2.5±0.1 Volt - generally: 0.5Ub±4% |
| Current drawn | approx. 1mA |
| Temperature drift of sensitivity | approx. +0.045%/K |
| Temperature drift of zero point | approx. 0.03(10)mV/K |
- • Each sensor will be delivered with individual calibration dates (offset and sensitivity)
- • On request: PWM-output
Dimensions (in mm) and Connections
